Scrubbers

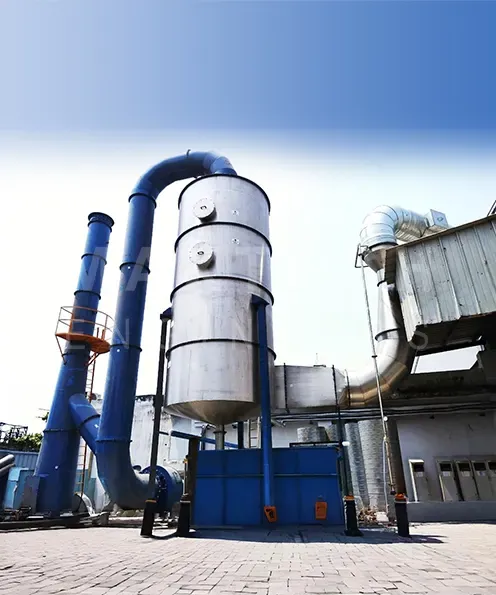

Ventury Scrubber
The Venturi Scrubber is a highly effective air pollution control system designed to remove particulate matter, acidic gases, fumes, and odors from industrial exhaust streams using a liquid scrubbing medium. It is especially suitable for high-temperature, sticky, corrosive, or explosive pollutants where dry filtration is not feasible.
Airflow Capacity1,000 to 100,000 m³/hr
Particle Removal EfficiencyUp to 99%
Operating TemperatureUp to 250°C
Working Principle
Contaminated gas enters the scrubber and comes into contact with scrubbing liquid (water or chemical solution). Pollutants are absorbed, neutralized, or captured by liquid droplets. Cleaned gas exits through a mist eliminator, while contaminated liquid is drained for treatment or recirculation.
Dust-laden air / gasClean airScrubbing liquid
Technical Specifications 12 PARAMETERS
| Scrubber Type | Venturi / Packed Bed / Spray Tower |
|---|---|
| Airflow Capacity | 1,000 to 100,000 m³/hr |
| Particle Removal Efficiency | Up to 99% |
| Gas Absorption Efficiency | Up to 98% (gas dependent) |
| Suitable Pollutants | Acidic gases, fumes, sticky dust, odors |
| Operating Temperature | Up to 250°C |
| Liquid Medium | Water / Chemical solution |
| Pressure Drop | 100 to 350 mm WC |
| Mist Eliminator | PP / SS / FRP |
| Construction Material | FRP / PP / Rubber-lined MS / SS |
| Liquid Circulation | Pump with recirculation tank |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Chemical & Fertilizer Plants
- Acid Fumes & Gas Neutralization Systems
- Metal Pickling & Surface Treatment
- Boiler Flue Gas Cleaning
- Pharmaceutical & Petrochemical Industries
