Dust Extraction & Collection System
Cyclone

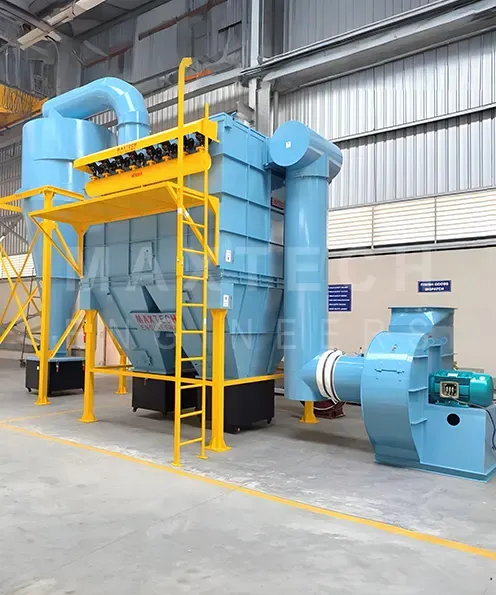

Dust CollectorThe Cyclone Dust Collector is a robust and cost-effective mechanical dust separation system that removes particulate matter from air or gas streams using centrifugal force. It is best suited for coarse and medium dust particles, high dust loading, and high-temperature applications, without the use of filter media.
Airflow Capacity1000 to 100,000 CFM / m³/hr
Collection Efficiency70 to 95%
Operating TemperatureUp to 300°C
Working Principle
Dust-laden air enters the cyclone tangentially, creating a high-velocity spiral motion. Centrifugal force drives dust particles toward the cyclone wall, where they lose momentum and fall into the hopper, while clean air exits through the vortex finder at the top.
Dust-laden air / gasClean air
Technical Specifications 10 PARAMETERS
| Airflow Capacity | 1000 to 100,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Particle Size Removal | 0.5 microns (coarse dust) |
| Collection Efficiency | 70 to 95% (particle & design dependent) |
| Operating Temperature | Up to 300°C |
| Pressure Drop | 100 to 250 mm WC |
| Construction Material | Mild Steel / Stainless Steel |
| Dust Discharge | Dust bin / Rotary airlock |
| Moving Parts | None |
| Power Requirement | Not required (except fan) |
| Maintenance | Very low |
Applications
- Cement, lime & mineral processing
- Boilers & furnaces
- Crushers & screening plants
- Wood & biomass handling
- Pre-cleaner for bag filters or wet scrubber
