Dust Extraction & Collection System
Manual Shaker Bag Type

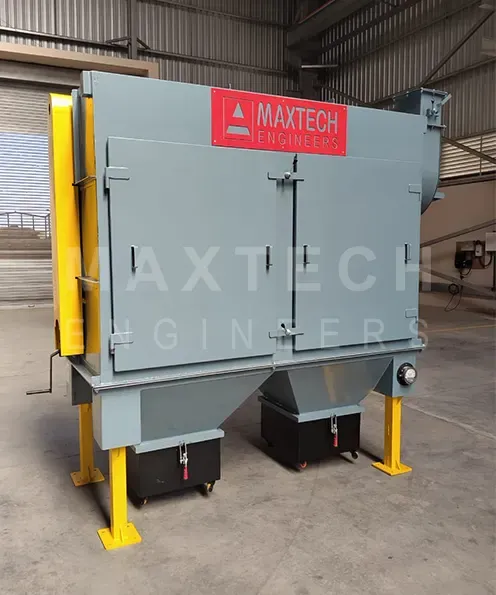

Dust CollectorThe Manual Shaker Bag Type Dust Collector is a simple, economical, and dependable dust control solution for small-scale and intermittent operations. Dust captured on fabric filter bags is removed by a hand-operated shaking mechanism, eliminating the need for compressed air or automatic cleaning systems.
Airflow Capacity1000 to 20,000 CFM / m³/hr
Filtration Efficiency99%
Operating TemperatureUp to 120°C
Working Principle

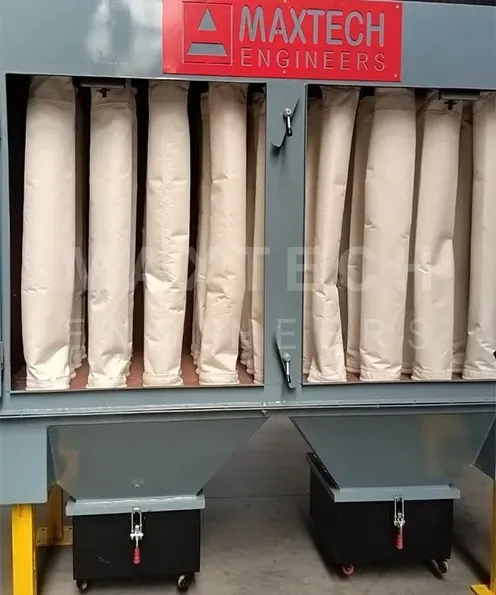

Dust-laden air passes through fabric filter bags where dust particles are retained on the bag surface. At regular intervals, the operator manually shakes the bags using a handle mechanism, causing the dust to fall into the hopper or collection bin while clean air exits through the outlet.
Dust-laden air / gasClean air
Technical Specifications 13 PARAMETERS
| Airflow Capacity | 1000 to 20,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Filtration Media | Polyester / Cotton / Acrylic |
| Filtration Efficiency | 99% |
| Filter Bag Diameter | 120 to 160 mm |
| Filter Bag Length | 1,000 to 3,000 mm |
| Cleaning Mechanism | Manual Mechanical Shaking |
| Operating Mode | Offline / Intermittent |
| Air-to-Cloth Ratio | 0.6 : 1 to 1.0 : 1 |
| Operating Temperature | Up to 120°C |
| Dust Discharge | Dust bin / Collection tray |
| Construction Material | Mild Steel / Stainless Steel (Optional) |
| Utility Requirement | Not required for cleaning |
| Power Supply | Not required (except fan, if provided) |
Applications
- Small workshops & fabrication units
- Woodworking & furniture industries
- Flour mills & grain processing units
- Cement bag filling & material handling areas
- Small powder handling operations
