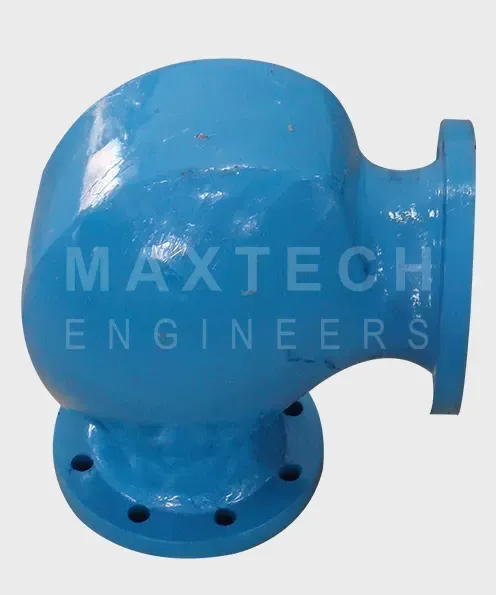

Wear Resistant Bend

Name: Wear Resistant Bend
Brand: Maxtech Engineers

Wear resistant bends are heavy-duty pipeline elbows used in pneumatic conveying lines of dust extraction systems where abrasive particulate matter changes direction. They are internally lined with abrasion-resistant materials such as ceramic tiles, high-chrome alloys, hardened materials, or polymer linings to extend service life under high wear conditions.

Working Principle

Particles conveyed at high velocity impact the bend walls. Wear-resistant lining absorbs impact and friction, reducing erosion and maintaining pipeline integrity. Without such bends, elbows wear quickly, leading to leaks and loss of suction.

Technical Specifications 11 PARAMETERS

Bend Type	Long-radius / short-radius elbow designed for high-velocity dust-laden airflow
Material of Construction	Mild Steel (MS) heavy gauge. Stainless Steel (SS 304 / SS 316). Abrasion-resistant steel (HARDOX / AR plates). Ceramic-lined or PU-lined (for high abrasion applications)
Thickness	3 mm to 8 mm (application dependent)
Diameter	100 mm to 600 mm (matches duct size)
Bend Radius	1D / 1.5D / 2D radius options to reduce wear and pressure drop
Internal Lining (Optional)	Ceramic tiles, Polyurethane lining, Chromium carbide overlay
Surface Finish	Smooth internal finish to minimize friction and prevent dust accumulation
End Connections	Flanged ends, Slip-on / weld-on, Quick clamp joints
Operating Conditions	Temperature: up to 80 to 250°C (material-specific). Velocity: 18 to 25 m/s for dust conveying
Application	Dust collection ducts handling abrasive dust such as wood, metal, minerals, cement, polymers, grain, and foundry dust
Performance	High abrasion resistance. Longer service life compared to standard GI/MS bends. Reduced maintenance and duct wear
