Dust Extraction & Collection System
Motorized Shaker Bag Type

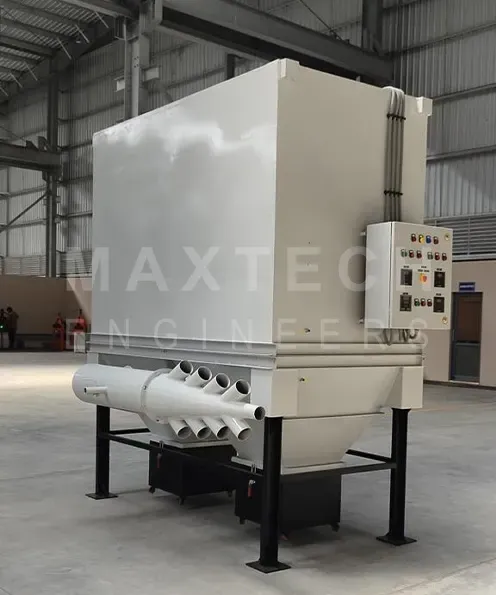

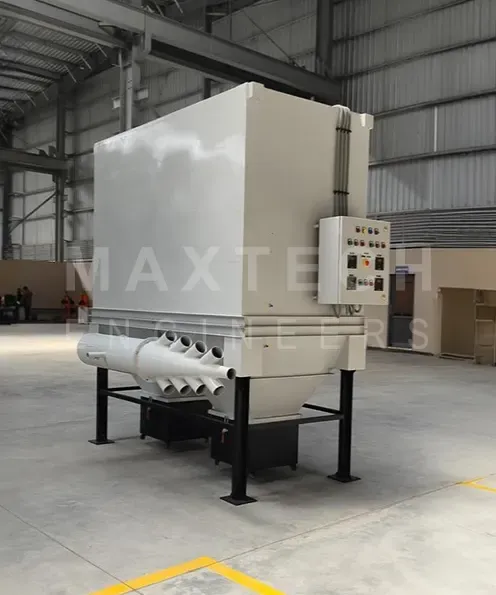

Dust CollectorThe Motorized Shaker Bag Type Dust Collector is a simple, robust, and cost-effective dust collection system for intermittent or low-to-medium dust-loading applications. Dust collected on fabric filter bags is removed by a motor-driven mechanical shaking mechanism, eliminating the need for compressed air and reducing operating costs.
Airflow Capacity1000 to 20,000 CFM / m³/hr
Filtration Efficiency99%
Operating TemperatureUp to 110°C
Working Principle
Dust-laden air passes through fabric filter bags where dust is retained on the bag surface. At preset intervals, a motorized shaking mechanism vibrates the bags, dislodging accumulated dust into the hopper or collection bin, while clean air exits through the outlet.
Dust-laden air / gasClean air
Technical Specifications 13 PARAMETERS
| Airflow Capacity | 1000 to 20,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Filtration Media | Polyester / Cotton / Acrylic |
| Filtration Efficiency | 99% |
| Filter Bag Diameter | As per requirement |
| Filter Bag Length | 1,500 to 3,000 mm, as per requirement |
| Cleaning Mechanism | Motorized Mechanical Shaking |
| Operating Mode | Intermittent / Offline Cleaning |
| Air-to-Cloth Ratio | As per requirement |
| Operating Temperature | Up to 110°C |
| Dust Discharge | Dust bin / Screw conveyor |
| Construction Material | Mild Steel / Stainless Steel (Optional) |
| Drive System | Geared motor with shaking linkage |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Woodworking & Furniture Industries
- Grain, Flour & Food Processing Units
- Small Foundries & Workshops
- Cement Bag Filling & Handling Areas
- Packaging and Material Transfer Points
