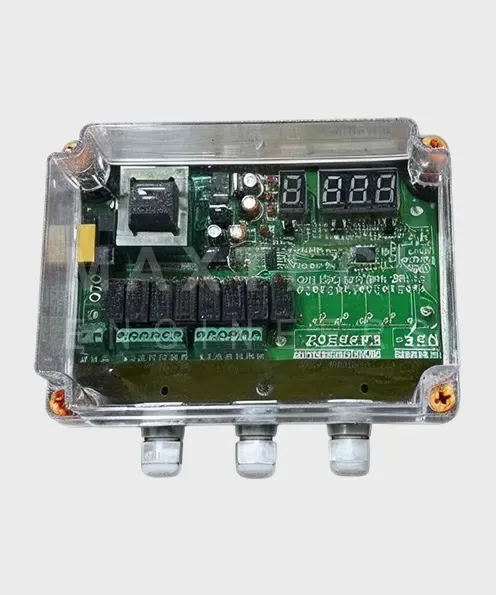

Sequential Timer Machine
A sequential timer machine is an electronic controller used in pulse-jet cleaned dust collectors. It sequences the firing of solenoid valves to generate timed bursts of compressed air for cleaning filter bags or cartridges.
Working Principle
The controller is programmed with timing parameters such as ON time (pulse duration), OFF time (delay between pulses), and sequence order (which valve fires when). It energizes each solenoid valve in turn to release short bursts of compressed air that clean individual filter rows.
Technical Specifications 11 PARAMETERS
| Product | Sequential Timer Machine |
|---|---|
| Type | Electronic, microcontroller / PCB-based pulse jet sequencing controller |
| Input Voltage | 230V AC / 110V AC (model dependent) |
| Output Channels | 4 / 6 / 8 / 12 / 24 channels (expandable) |
| Output Type | 24V DC / 110V AC / 230V AC for solenoid coil activation |
| Pulse ON Time | Adjustable (typically 50 to 500 ms) |
| Pulse OFF / Interval Time | Adjustable (typically 5 to 60 seconds) |
| Display / Indicators | LED indication for active channel and power status |
| Protection | Overload and short-circuit protection for output channels |
| Enclosure | MS / ABS powder-coated enclosure, IP55 / IP65 rated (optional) |
| Application | Controls sequential pulsing of bag filters / jet manifolds for efficient dust collector cleaning |
