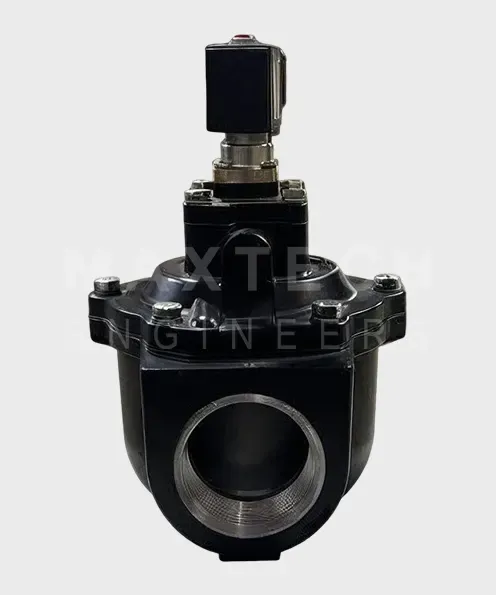

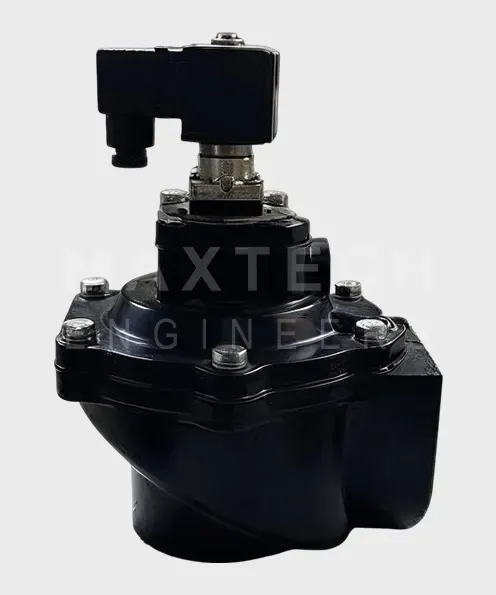

Solenoid Valve
Solenoid valves in dust collector systems are electromechanical valves that control the release of high-pressure air pulses used to clean filter bags or cartridges. They are often manifolded and sequenced via a timer controller.
Temperature Range−20°C to +80°C
Working Principle
When the coil is energized, a magnetic field moves the valve plunger to open the high-pressure air path. A short burst of compressed air is sent to the filter element for cleaning. When the coil de-energizes, the valve closes almost instantly. This rapid cycling enables controlled, localized blow-back cleaning of dust filters.
Technical Specifications 13 PARAMETERS
| Product | Solenoid Valve |
|---|---|
| Type | Diaphragm-operated, normally closed pulse jet solenoid valve |
| Body Material | Aluminum / Die-cast / Stainless Steel |
| Diaphragm Material | Nitrile (NBR) / Viton for high-temperature applications |
| Coil Voltage | 24V DC / 110V AC / 230V AC |
| Port Size | 1″ / 1.5″ / 2″ (depending on airflow requirement) |
| Operating Pressure | 0.5 to 7 bar (typical) |
| Response Time | < 20 ms |
| Flow Rate | High-flow design suitable for pulse jet cleaning |
| Temperature Range | −20°C to +80°C (standard) |
| Duty Cycle | Continuous (with intermittent pulsing) |
| Mounting | Threaded or flange-mounted |
| Application | Delivers high-pressure air bursts for bag filter cleaning |
