Dust Extraction & Collection System
Reverse Pulse Jet Bag-Cage Type

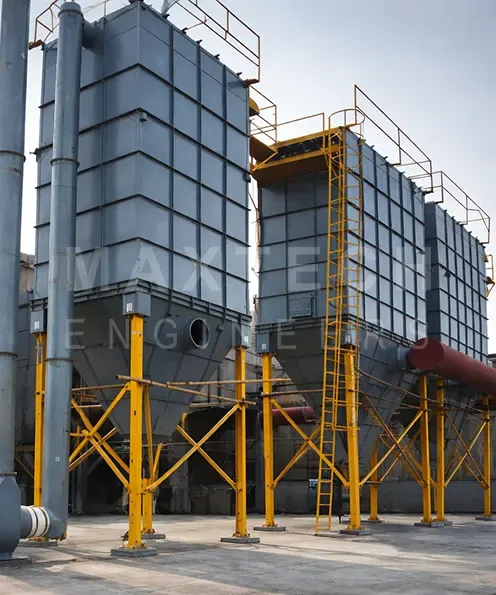

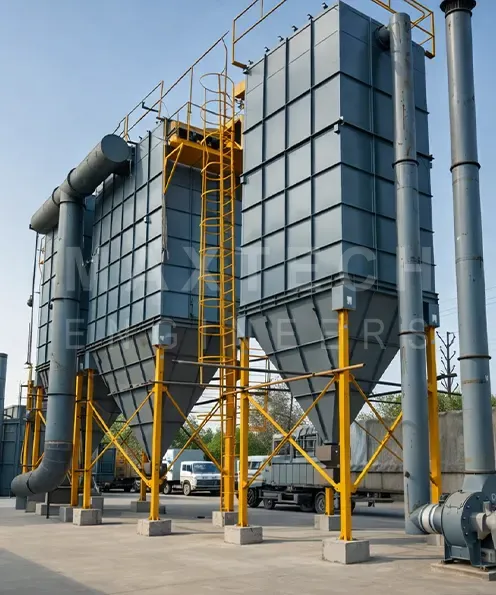

Dust CollectorThe Reverse Pulse Jet Bag-Cage Type Dust Collector is a robust and highly reliable air pollution control system designed for continuous removal of heavy and fine dust from industrial processes. It uses fabric filter bags supported by cages and is cleaned automatically by reverse pulse compressed air, ensuring stable performance even under high dust-loading conditions.
Airflow Capacity1000 to 100,000 CFM / m³/hr
Filtration Efficiency99% for fine & sub-micron particles
Operating TemperatureUp to 110°C
Working Principle
Dust-laden air enters the collector and passes through fabric filter bags where dust particles are retained on the bag surface. Periodic reverse pulses of compressed air dislodge the dust cake from the bags, allowing it to fall into the hopper for disposal, while clean air exits through the outlet.
Dust-laden air / gasClean air
Technical Specifications 14 PARAMETERS
| Airflow Capacity | 1000 to 100,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Filtration Media | Pleated Bag / Cartridge Type |
| Filtration Efficiency | 99% for fine & sub-micron particles |
| Filter Area | As per requirement (depending on model) |
| Air-to-Cloth Ratio | As per requirement |
| Cleaning Mechanism | Reverse Pulse Jet (Compressed Air) |
| Pulse Pressure | 4 to 5 kg/cm² |
| Pulse Duration | As per required |
| Cleaning Control | Timer-based or Differential Pressure (ΔP) |
| Operating Temperature | Up to 110°C (higher on request) |
| Dust Discharge | Rotary airlock / Screw conveyor / Collection drum / Dustbins / Double Gate Gravity Dampers |
| Construction Material | Mild Steel / Stainless Steel (SS 304 / SS 316) |
| Blower & Motor | Direct or belt driven, IE2 / IE3 efficiency |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Cement, Lime & Clinker Plants
- Foundries & Metal Casting Units
- Boiler & Thermal Power Plants
- Crusher & Mineral Processing Plants
- Steel, Sponge Iron & Ferro Alloy Industries
- Chemical & Bulk Powder Processing
