Fume Extraction System

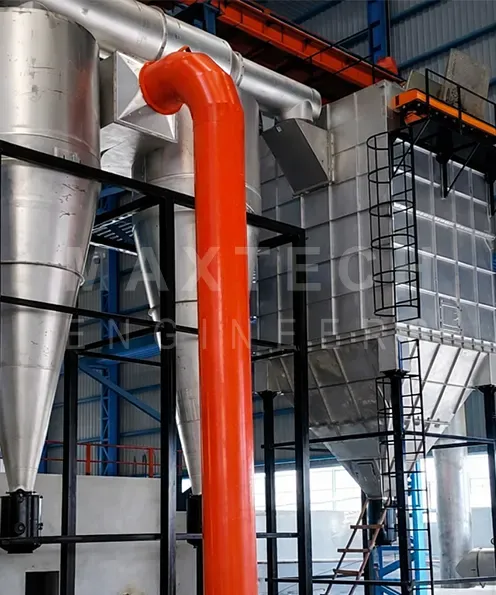

Fume Extraction Integrated With Cyclone Separator
The Fume Extraction System is designed to capture, filter, and remove hazardous fumes, smoke, and fine particulate matter at the source, ensuring a safe and compliant industrial working environment. It effectively controls airborne contaminants generated during welding, cutting, soldering, melting, and chemical processes.
Airflow Capacity1000 to 100,000 CFM
Filtration Efficiency99.9%
Operating TemperatureUp to 80°C
Working Principle
Contaminated air is captured at the source using hoods, extraction arms, or enclosures. The air passes through multi-stage filters where fumes and particulates are removed, and clean air is either recirculated or safely exhausted outside.
Dust-laden air / gasClean air
Technical Specifications 13 PARAMETERS
| System Type | Dry fume extraction with spark arrestor and filtration unit |
|---|---|
| Airflow Capacity | 1000 to 100,000 CFM (can be customized based on process requirement) |
| Capture Method | Extraction arm / Hood / Enclosure |
| Filtration Stages | Pre-filter + Fine filter + HEPA (Optional) |
| Filtration Efficiency | 99.9% (HEPA up to 0.5 micron) |
| Filter Media | Polyester / PTFE / Activated Carbon (Optional) |
| Suitable Contaminants | Welding fumes, smoke, oil mist, chemical vapors |
| Fan Type | Centrifugal blower |
| Noise Level | ≤ 85 dB(A) |
| Construction Material | Mild Steel / Stainless Steel |
| Operating Temperature | Up to 80°C |
| Control System | Manual / VFD / PLC (Optional) |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Welding & Fabrication Shops
- Foundries & Metal Melting Areas
- Laser / Plasma / Gas Cutting
- Electronics Soldering
- Chemical & Pharmaceutical Industries
