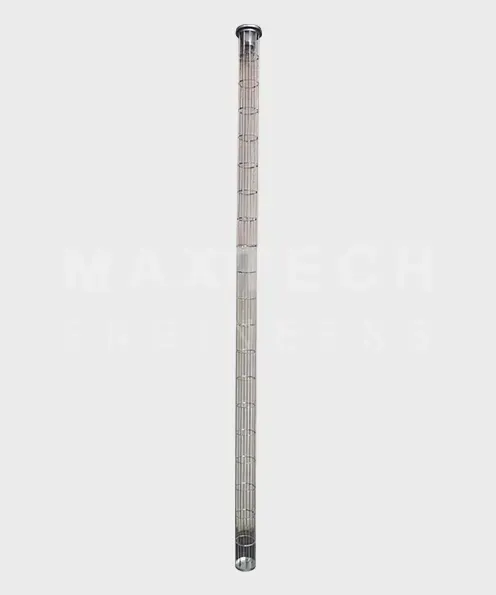

Cage Cartridge Filter
A cage cartridge filter combines a structural metal cage support with a pleated filter cartridge used in cartridge dust collectors. The cage supports the pleated media to prevent collapse and maintain effective filtration, especially under high airflow and pulse-jet cleaning conditions.
Working Principle
Dust-laden air enters the filter housing and passes through the pleated cartridge. Particles are captured on the media surface while clean air flows through the cage structure. A pulse of compressed air (via solenoid valve and timer) reverses flow to clean the media. The cage prevents deformation of the element during high-pressure cleaning.
Technical Specifications 7 PARAMETERS
| Product | Filter Bag Cages |
|---|---|
| Material | Mild Steel (MS) / Stainless Steel (SS). Galvanized or powder-coated finish |
| Type | 8 to 12 vertical wire cages with venturi |
| Diameter | 120 mm to 160 mm |
| Length | 1 to 6 meters |
| Finish | Epoxy coated / Galvanized to prevent corrosion |
| Purpose | Supports filter bags and ensures proper pulse-jet cleaning |
