Dust Extraction & Collection System
Reverse Pulse Jet Cartridge Type

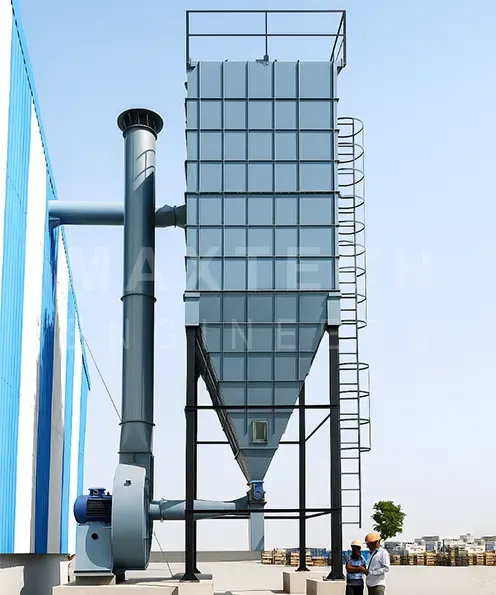

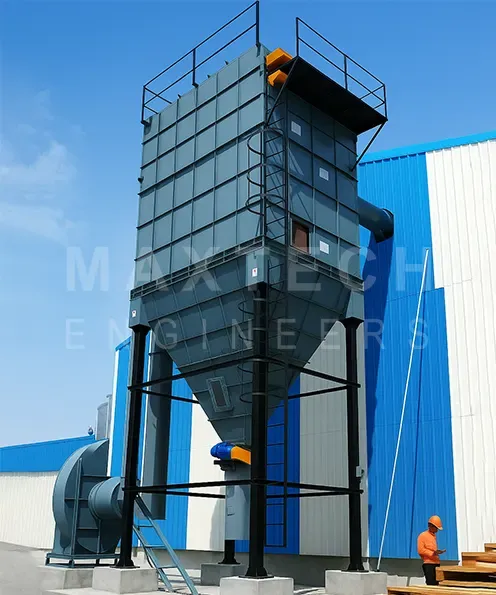

Dust CollectorA Reverse Pulse Jet Cartridge Dust Collector is a compact, high-efficiency air pollution control system designed to remove fine dust, fumes, and particulate matter from industrial processes. It uses pleated cartridge filters cleaned automatically by short bursts of compressed air in the reverse direction, ensuring continuous operation.
Airflow Capacity1000 to 100,000 CFM / m³/hr
Filtration Efficiency99% for fine & sub-micron particles
Operating TemperatureUp to 110°C
Working Principle
Dust-laden air enters the collector and passes through pleated cartridge filters where dust is captured on the outer surface. At pre-set intervals, compressed air pulses clean the cartridges in reverse flow, dislodging dust into the hopper for easy disposal, while clean air exits through the outlet.
Dust-laden air / gasClean air
Technical Specifications 14 PARAMETERS
| Airflow Capacity | 1000 to 100,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Filtration Media | Pleated Bag / Cartridge Type |
| Filtration Efficiency | 99% for fine & sub-micron particles |
| Filter Area | As per requirement (depending on model) |
| Air-to-Cloth Ratio | As per requirement |
| Cleaning Mechanism | Reverse Pulse Jet (Compressed Air) |
| Pulse Pressure | 4 to 5 kg/cm² |
| Pulse Duration | As per required |
| Cleaning Control | Timer-based or Differential Pressure (ΔP) |
| Operating Temperature | Up to 110°C (higher on request) |
| Dust Discharge | Rotary airlock / Screw conveyor / Collection drum / Dustbins / Double Gate Gravity Dampers |
| Construction Material | Mild Steel / Stainless Steel (SS 304 / SS 316) |
| Blower & Motor | Direct or belt driven, IE2 / IE3 efficiency |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Crusher & Mineral Processing Plants
- Foundry, Casting & Metal Grinding
- Cement, Lime & Powder Handling
- Welding Fumes & Fabrication Shops
- Chemical, Pharma & Food Processing
- Woodworking & Furniture Industries
