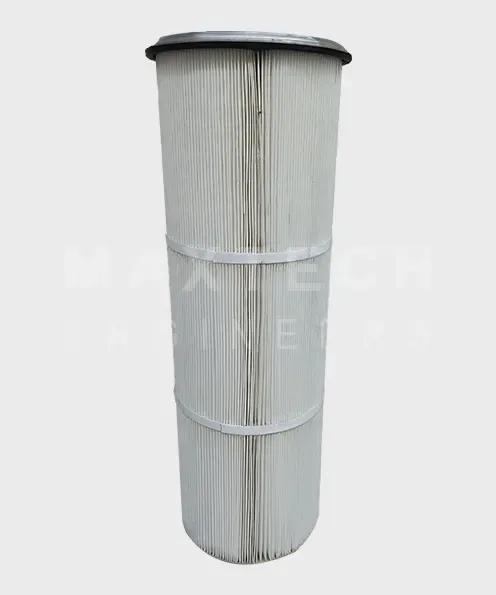

Cartridge Filter
Cartridge filters are high-surface-area pleated filter elements used in industrial dust collectors to trap fine and submicron particulate. They take the place of traditional bag filters where space or fine dust loading makes bag filters less efficient.
Filtration EfficiencyUp to 99.5% for fine dust
Working Principle
Contaminated air flows through the pleated media (either outside-in or inside-out). Particles accumulate on the media surface or within pleats while clean air exits the center core. In pulse-jet systems, periodic compressed air pulses dislodge collected dust, which drops into the hopper.
Technical Specifications 7 PARAMETERS
| Product | Cartridge Filters |
|---|---|
| Filter Media | Polyester / PTFE / Nano-fiber. Anti-static option available |
| Filtration Efficiency | Up to 99.5% for fine dust (1 micron) |
| Type | Pleated vertical or horizontal cartridges |
| Length | 300 mm to 1200 mm |
| End Caps | GI / Stainless Steel (SS) / PU molded |
| Application | High-efficiency filtration for fine dust environments |
