Dust Extraction & Collection System
Reverse Pulse Jet PUF Insulated Type

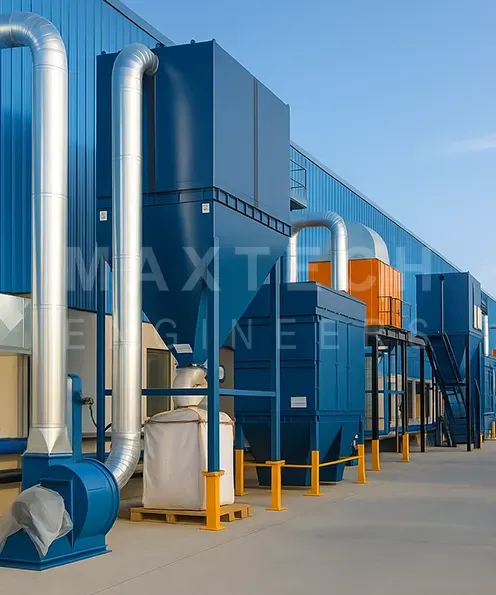

Dust CollectorThe Reverse Pulse Jet PUF Insulated Type Dust Collector is engineered for high-temperature and moisture-prone industrial applications. The unit is externally insulated with PUF panels to prevent heat loss and condensation, ensuring stable filtration efficiency, long filter life, and reliable operation in harsh process conditions.
Airflow Capacity1000 to 20,000 CFM / m³/hr
Filtration Efficiency99.9%
Operating TemperatureUp to 110°C
Working Principle
Hot, dust-laden air enters the collector and passes through filter bags where dust is retained. Periodic reverse pulse compressed air jets clean the filters, dislodging dust into the hopper. PUF insulation maintains internal temperature and avoids moisture formation.
Dust-laden air / gasClean air
Technical Specifications 12 PARAMETERS
| Airflow Capacity | 1000 to 20,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Filtration Media | Polyester / Aramid (Nomex) / PTFE / Glass Fiber |
| Filtration Efficiency | 99.9% |
| Cleaning Mechanism | Reverse Pulse Jet (Compressed Air) |
| Cleaning Control | Timer-based or Differential Pressure (ΔP) |
| Operating Temperature | Up to 110°C (media dependent) |
| Insulation Type | PUF Insulated Panels |
| Insulation Thickness | 40 to 100 mm |
| Dust Discharge | Rotary airlock / Screw conveyor / Double flap valve |
| Construction Material | Mild Steel with PUF cladding / SS optional |
| Blower & Motor | Belt or direct driven, IE2 / IE3 efficiency |
| Power Supply | 415 V / 50 Hz / 3 Phase |
Applications
- Boilers & Thermal Power Plants
- Cement, Lime & Kiln Exhaust Systems
- Sponge Iron & Steel Plants
- Hot Gas & High-Moisture Dust Filtration
- Chemical & Fertilizer Industries
