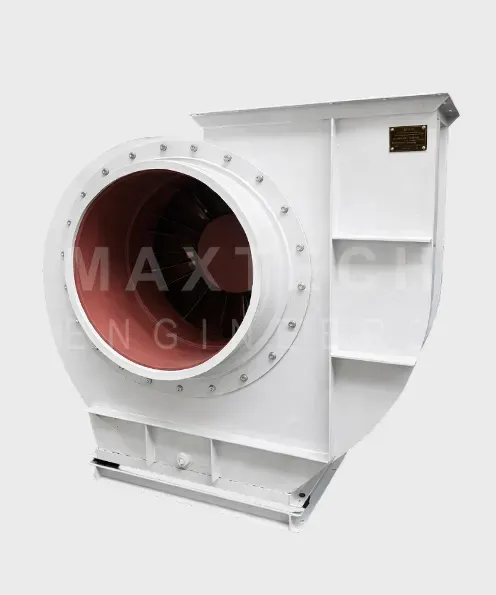

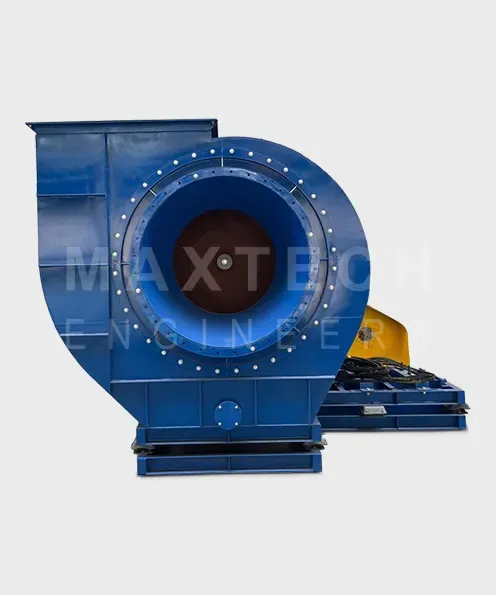

Centrifugal ID Blower
Direct Drive / V-Belt Drive / Couple DriveA centrifugal blower (blower = fan category) uses a rotating impeller to accelerate air radially into a scroll housing and convert velocity to pressure. They are the go-to choice where moderate to low static and high static pressure, ductwork, filters, or particulate handling exist (e.g., baghouses, FD/ID boiler fans, pneumatic conveying, process ventilation). Typical industrial families include radial, forward-curved, backward-curved (inclined), and airfoil wheels.
Working Principle
An industrial centrifugal blower draws air into the center of a rotating impeller, accelerates it radially outward using centrifugal force, and converts the resulting high velocity into static pressure inside the scroll casing, delivering high-pressure airflow for industrial applications.
Technical Specifications 7 PARAMETERS
| Airflow Capacity | ~500 to 4,00,000 CMH depending on model/size |
|---|---|
| Total / Static Pressure | 100 to 1000 mm WC |
| Wheel Diameter | ~225 mm up to 3000 mm |
| Speed (RPM) | Typically 750 to 2800 rpm depending on design and driver |
| Motor Power | From fractional kW up to several 100s kW for large process fans |
| Temperature | Standard up to moderate process temps; high-temp versions available with special bearings/materials |
| Construction Material | Stainless Steel, Mild Steel |
Applications
- Foundries and Metal Processing Units
- Cement, Minerals, and Mining Plants
- Power Plants and Boiler Systems
- Chemical and Pharmaceutical Industries
- Food Processing and Grain Handling Plants
- Textile and Paper Industries
