Multi-Cyclone

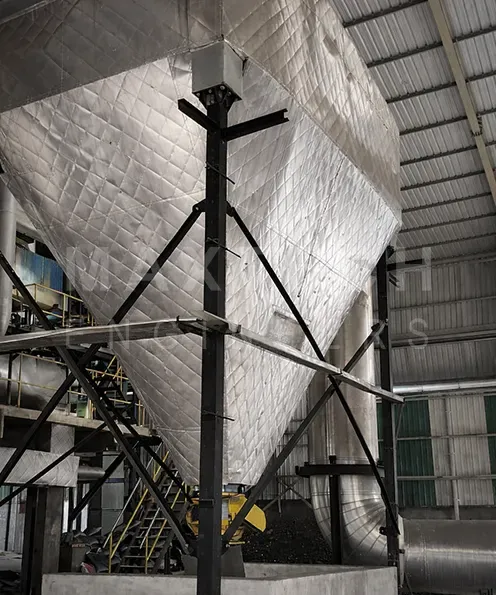

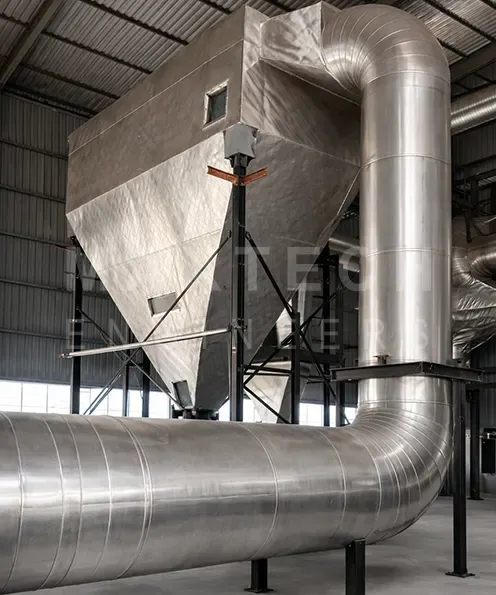

Dust CollectorThe Multi-Cyclone Dust Collector is a mechanical dust separation system consisting of multiple small-diameter cyclones operating in parallel. It is designed for high dust-loading and high-temperature applications, efficiently removing coarse and medium particles using centrifugal force, without the use of filter media.
Airflow Capacity1000 to 100,000 CFM / m³/hr
Collection Efficiency70 to 95%
Operating TemperatureUp to 300°C
Working Principle
Dust-laden gas enters the multi-cyclone chamber and is distributed into multiple cyclonic tubes. Each cyclone generates a strong centrifugal force that drives dust particles to the walls, where they fall into a hopper, while clean gas exits from the top.
Dust-laden air / gasClean air
Technical Specifications 11 PARAMETERS
| Airflow Capacity | 1000 to 100,000 CFM / m³/hr (can be customized based on process requirements) |
|---|---|
| Particle Size Removal | 0.5 microns (high efficiency for coarse dust) |
| Collection Efficiency | 70 to 95% (dust dependent) |
| Operating Temperature | Up to 300°C |
| Pressure Drop | 100 to 250 mm WC |
| Construction Material | Carbon Steel / Stainless Steel |
| Number of Cyclones | 6 to 48 (customizable) |
| Dust Discharge | Rotary airlock / Screw conveyor |
| Moving Parts | None |
| Power Requirement | Not required (except induced draft fan) |
| Maintenance | Very low |
Applications
- Boiler flue gas & furnace exhaust
- Cement, lime & mineral processing plants
- Steel, sponge iron & foundry industries
- Grain dryers & agro-based industries
- Pre-cleaner for bag filters or wet scrubbers
